Elite Core CS45-5 Converta-Shell Rugged Shielded CAT5E Cable, 5'

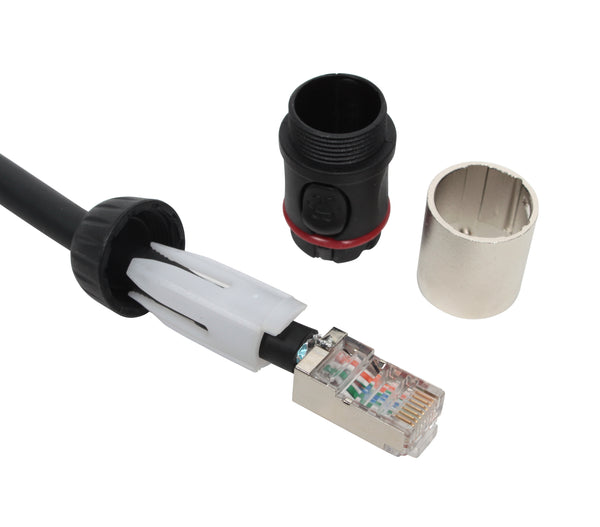

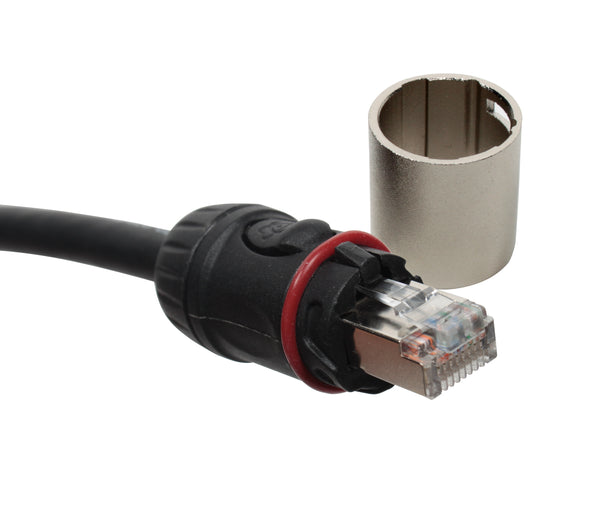

Elite Core CS-45 CONVERTA-SHELL cables feature the patent-pending CS-45 connector. The CS-45 allows for Ethercon style connections or RJ45 in a protective shell. Simply twist off the barrel of the CS-45 to reveal a fully protected RJ45 with push-button release in place. Elite Core's SUPERCAT5E STP cable is used in all CS-45 assemblies. It's tour-grade and tough. Fully shielded with the drain wire solder to the RJ45 on both ends. Fully compatible with standard RJ45 jacks or with Neutrik® EtherCon® jacks.

• Compatible with Neutrik® EtherCon® jacks
• Fast, twist-off conversion from RJ45 to XLR style ethernet jack
• Fully finished RJ45 connection with release button
• No need to dismantle cable to revert to RJ45
• Flexible design provides for flat lay and smooth roll-up
• Patented design assures twist pitch stability
• Effective spacing of cable pairs controls crosstalk
• Rugged build protects cable from damage caused by external force or roll-overs
• Perfect for mobile audio, DMX, video, and LED screens

Type:

SUPERCAT5E STP Tactical Shielded

Twisted Pair

Jacket Color:

Black

Outside Diameter:

7.5mm

Conductor Count:

4 Pair

Construction Details:

(7/0.2+PE0.99)*(2C+MYLAR+PE2.65)*4 PAIR+ DW 7/0.22TC+AL FOIL+PVC

Main Conductor Guage:

24 AWG

Conductor D.C.R. ohm/1Km:

<89.3

Nominal Capacitance ~ Conductors:

<68.9 pF/m

Nominal Capacitance ~ Pairs:

<57.3 pF/m

Impedance:

100 ohm

Flex Life:

>8730 (Load of 500G ±30°)

Tensile Strength:

>109kgf

Optimal Working Temperature:

-20°F - 140°F

Max Working Temperature:

-40°F - 158°F
